【Scope of application】

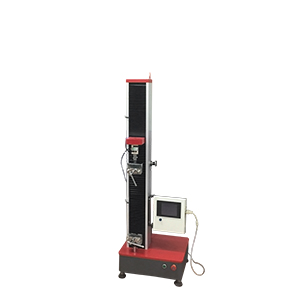

YG025P electronic strand strength tester is used to measure the strength and elongation of various strands.

【Related standards】

GB/T8698 ISO6939 etc.

【technical parameter】

1. Test strength range: 0～2500N

2. Test strength * small reading: 0.1N

3. Stretching speed of upper yarn hook: 500mm/min

4. Test accuracy: ≤±0.02%FS

5. Effective distance of lower yarn hook: 450mm

6. The maximum stroke of the upper yarn hook: 210mm

7. Yarn hook width series: 8, 12, 16, 20, 24, 28, 32

8. Output type: 5-digit display breaking strength (N)

9. Digit display stretch length (mm)

10. 3 digits display the total number of trials

11. Power supply: AC220V±10% 50Hz

12. Dimensions: 500(L)×500(W)×1200(H)(mm)

13.Weight: about 100Kg
