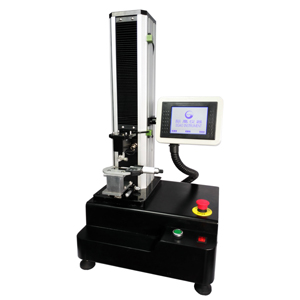

YG165 electronic fiber strength tester

Scope of application

It is used to test the mechanical properties of dry (wet) breaking strength, breaking elongation, initial modulus and other materials of various fibers and metal superfine wires.

Related standards

GB/T9997-2008, GB/T14337, GB/T 21120-2018, JTT 524-2019, ISO5079, ISO11566, etc.

technical parameter

1. Maximum load test: 100cN 300cN 500cN 1000cN

2. Load test error: 0.02% (F.S)

3. Load test sensitivity: 0.01cN

4. Maximum elongation measurement range: 650mm

5. Resolution of elongation measurement: 0.01mm

6. Zero drift: 0.2%(F.S)

7. Lower gripper descending speed: 1200mm/min (digital setting)

8. Lowering speed error: 1%

9. The rising speed of the lower gripper: 200mm/min

10. Power supply: AC220V±10%, 50Hz

11. Dimensions: 440×410×800mm (L×W×H)

12. Weight: about 70kg
