【Scope of application】

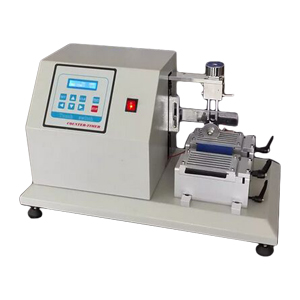

JG021 glove cutting resistance testing machine is specially designed to test the strength of protective gloves and upper protection area. Under the specified load, use a counterclockwise rotating circular cutter to cut the sample to determine the cutting resistance of the glove or shoe upper.

【Standards compliant】

EN388.6.2 ISO20344.6.14

【technical parameter】

1. Load weight: 5N±0.05N

2. Blade size: Ø45±0.5 mm, thickness 3mm

3. Cutting stroke: 50mm

4. Cutting speed: 10cm/s

5. Counter 1~99999.9

6. Power supply AC220V±10% 50Hz

7. Instrument size550×350×350mm(L×W×H)

8. Instrument weight 80kg
