【Scope of application】

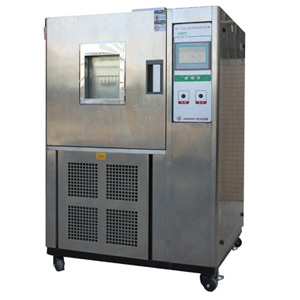

This machine is used to test the cold resistance of finished shoes, rubber, plastic, shoe soles, synthetic leather, etc. to understand the adaptability of materials or finished products to low-temperature climates or cold regions. This machine is made of stainless steel and can be equipped with various resistant fixtures. Different requirements apply.

【Standards compliant】

Comply with ASTM-D1790, D1593,1052, JIS-K6545, HB-T2877, CNS-7705, ISO20344, ISO 5402, CB/T20991-2007 technical basis.

【technical parameter】

1. Material of inner and outer box: stainless steel #304

2. Controller: Daily control

3. Temperature range: (1) Normal temperature -30°C (2) Normal temperature -50°C (3) Normal temperature -70°C

4. Optional inner box action: leather torsion clamp or optional outsole, finished shoes, bending and bending tests

5. Protection device: thermal shutdown protection, leakage protection shutdown, over-temperature protection, overload protection and other functions

6. Control accuracy: ±0.3℃

7. Distribution uniformity: ±0.1℃

8. Cooling speed: It takes about 60min from normal temperature to -30℃

9. Refrigerant: R404 environmentally friendly refrigerant

10. Compressor: Taikang, France

11. Compressor start delay: 5min

12. Power consumption: (4-6) KW

13.Insulation materials: rigid foam and glass wool

14. Counter: LCD, 0～999,999

15. Window: (210×35×270) mm, two vacuum layers

16.Window light: P1 light, 5W

17. Power supply: AC380V 50Hzor1 AC220V 50HZ

18.Motor: No belts, multiple imported geared motors

19. Inner box size: (600×600×550) mm

20. Volume: (110×105×160) cm

21. Weight: about 420kg
