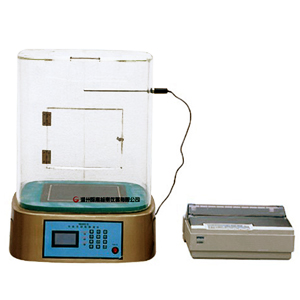

YG606E flat plate heat preservation instrument

【Scope of application】

It is used to test the thermal insulation performance of various fabric flat constant temperature difference heat dissipation methods.

【Related standards】

GB/T11048, ASTMD1518, JIS-1096, etc.

【technical parameter】

Model	YG606E
Temperature adjustment range	20-50℃
Temperature control accuracy	±0.5℃
Temperature display resolution	0.1℃
Preheating time setting	0～99.9min
Cycle times	1～9次
Sample size	300×300mm
Test board	250×250mm
Dimensions	520×630×755mm
Weight	65kg
Power	AC220V±10%, 220W,
