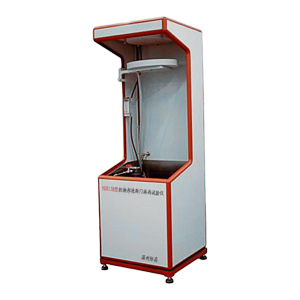

YG813B fabric Bundys door rain tester

Scope of application

The water repellency of the fabric is measured by the Bundesmann rain method, which simulates the water repellency of the fabric when it is subjected to a shower under exercise. The test sample is fixed on a test cup with a wiper device. The artificial rain is 1.5 meters high. By measuring the water content in the water cup and the water content on the surface of the test cloth, the water content of the test sample and the water repellency of the fabric can be evaluated.

Related standards

GB/T14577 ISO9865 BS EN 29865 DIN53888 JIS L1092 etc.

Specifications

1. Test cup: 4

2. Rotation speed of test cup: 6rpm

3. Rotation angle of test cup: 100º

4. Number of sprinkler heads: 300, evenly distributed on a plane with a diameter of 406mm

5. Wiper speed: 25rpm

6. The pressure of the wiper on the fabric: about 250cN

7. The distance between the sprinkler head and the test sample: 1.5 meters

8. Rotation speed of centrifugal dehydrator: 700rpm

9. Power supply: AC 220V, 50/60Hz, 2A

10. Dimensions: 750(L)×750(W)×2100(H)mm

11. Weight: about 185kg
