【Scope of application】

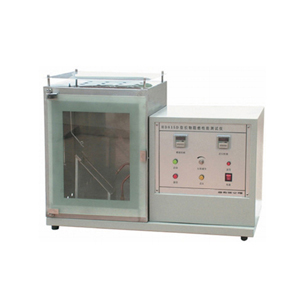

The fabric flame retardant instrument (small 45° method) is used to test the intensity and speed of burning after flammable textile materials are ignited.

【Related standards】

GB/T14644 ASTM D11230 CFR1610 etc.

【technical parameter】

1. Spread timing: 0～999.9S

2. Temperature display in the box: room temperature -99℃

3. Ignition time: 1s

4. Type of igniter: Syringe No.

5. Sample holder size: outer frame: 205mm×76mm

Inner frame: 165mm×40mm

6. Distance from the top of the igniter to the sample surface: 8mm

7. Dimensions: 440mm×370mm×540mm

8. Power source: AC220V 50Hz 20W
