【The main purpose】

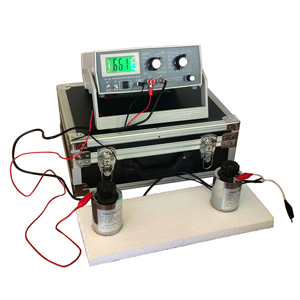

The fabric resistivity tester is used to detect the point-to-point resistivity of anti-static work clothes and anti-static fabrics. The principle is to add a test voltage of 100 V to the sample for 15 s, and the weak current flowing through the sample is sampled and amplified by a standard resistance, and then read from the high resistance meter. The number directly displays the resistance value, with high accuracy, rapid display, good stability and convenient reading.

【The main technical parameters】

1. Range: 105Ω～1013Ω

2. Indication error of high resistance meter: ±1%

3. Voltage: 100V DC

4. Equipped with electrode scale: standard distance 30cm

5. Instrument specifications: host: 252mm×265mm×100mm

6. Placement position: experiment table (or desktop)

【Standards compliant】

National standard GB12014-2009 "Anti-static clothing"
