【Scope of application】

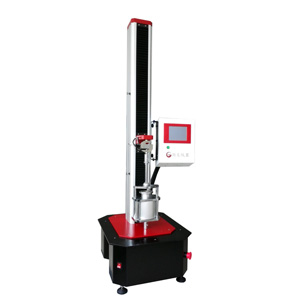

YG031S marble bursting strength tester (pneumatic) is used to test the bursting strength and expansion of marbles of cotton fabrics, elastic fabrics, hosiery and gloves.

【Related standards】

GB/T19976-2005 "Determination of Bursting Strength of Textiles" Steel Ball Method" Steel Ball Φ25mm, Φ38mm

EN12332-1; 1998 Steel ball Φ38mm

FZ/T01030-93 "Determination of Seam Strength and Expansion of Knitted Fabrics and Elastic Woven Fabrics Burst Method" Steel Ball Φ20mm

GB/T8878-2002 "Cotton Knitted Underwear" Steel ball Φ20mm

ASTMD3787-2001 "Standard Test Method for Bursting Strength of Textile Fabrics" Steel ball Φ25.4mm

ASTMD6797-2002 "Standard Test Method for Bursting Strength of Fabrics" Steel Ball Φ25.4mm

【technical parameter】

1. Structure form Single arm type (optional interface)

2. Measuring force range: 1～3000N

3. Effective stroke: 1000mm (without fixture)

4. Load measurement range: 1%-100% of the maximum load

5. Load measurement accuracy: +0.02% F•S

6. Beam displacement speed: 0.1～1000mm/min stepless speed regulation

7. Speed ​​accuracy: ±2%

8. Fixture diameter: ∮45mm (optional ∮25mm)

9. Diameter of the broken marble: ∮38mm (optional ∮20mm ∮25mm)

10. Dimensions (mm): 500×400×1400

11. Power supply: single-phase AC 220V±10%V

12. Weight: 100kg
