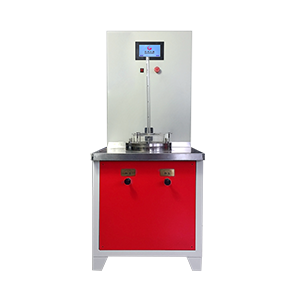

YT080 Geosynthetics Hydrostatic Pressure Tester (Geomembrane Impermeability Tester)

Scope of application

It is suitable for testing the hydrostatic pressure and permeability coefficient of non-woven geotextile, geomembrane, composite geomembrane, one cloth one membrane, two cloth one membrane and other materials.

Test Principle

When the pressure head on both sides of the sample reaches a certain value, the sample ruptures; increase the hydraulic pressure difference on both sides step by step and keep it for a certain period of time. When the seepage flow increases rapidly, indicating that the sample is damaged, the hydrostatic pressure value is obtained. The machine can contain two functions, namely the measurement of hydrostatic pressure resistance and the measurement of permeability coefficient.

Standards compliant

"Determination of Permeability of Composite Geomembrane" GB/T17642-1998

"GB/T 17642-2008 Geosynthetics Nonwoven Fabric Composite Geomembrane"

GB/T19979 "Impermeability of Geosynthetics"

JTG E50-2006

technical parameter

1. Measuring range: 04.0MPa

2. Resolution: 0.01 MPa

3. Inner diameter of water collector: 200mm

4. Diameter of the through hole of the porous plate: 3±0.05mm

5. Perforated hole spacing: 6mm

6. Dimensions: 700×550×1650mm (W×D×H)

7. Power supply: AC220V, 100W
