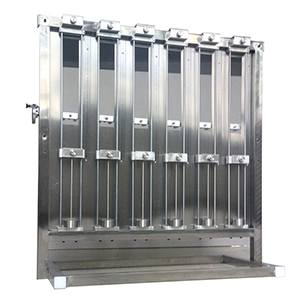

YG091G fabric elasticity testing machine

Scope of application

This machine is mainly used to test the elongation and deformation rate of stretchable yarn (chemical fiber stretchable loose yarn, spandex yarn) or textile fabric made of stretchable yarn under fixed load conditions.

technical parameter

1. Test station: 6;

2. Body material: all stainless steel design

3. Material of holder: aluminum alloy

4. Weight load: 3 pounds (1.35kg) or 4 pounds (1.8kg)

5. Effective clamping width of the clamp: 80mm

6. Gripper spacing: 0-300mm adjustable

7. Length of weight hook: 280mm

8. Proposal for overall dimensions: 1200 X 600 X 1650 (L*W*H) mm
