【Scope of application】

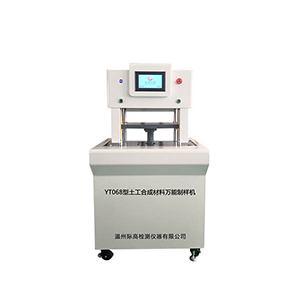

This product is suitable for the field of geosynthetic material testing and sample preparation. It is mainly used for the preparation of samples required for related tests of geotextiles, geomembranes, composite geotextiles, and composite geomembranes. It can meet most of the geosynthetic material test sample preparations, such as Broad strip stretch, strip stretch, trapezoidal tear, CBR burst strength test for mechanical performance test, effective pore size test, vertical permeability coefficient, hydrostatic pressure resistance and permeability coefficient test for hydraulic performance test.

【technical parameter】

1. Sampling pressure: the maximum working pressure is 6 tons, and the working air source pressure is not less than 0.5MPa.

2. Sample preparation efficiency: a complete sample preparation process: about 20 seconds

3. Sample preparation stroke: 150mm

4. Sample thickness: 20mm

4. Electricity source: Ac220V 50Hz

5. Dimensions: 800×700×1450mm (L×W×H)

6. Weight: 320kg
