【Scope of Application】

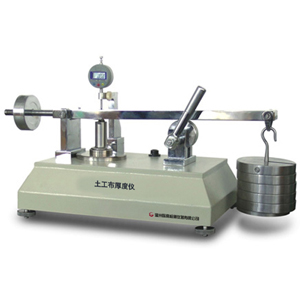

It is used to measure the thickness of geosynthetics and related products under different pressures and specified time.

【Standards compliant】

JTG E50, ISO 9863, GB/T 13761

【technical parameter】

1. Presser foot area: 25cm (circular diameter: Ф56.42mm)

2. Presser foot weight: 5N (self weight: 510.2g)

3. Sample pressure: 2±0.01KPa; 20±0.1KPa; 200±0.1KPa

4. Percentage table: 0～24±0.01mm

5. Dial gauge: 0～1±0.001mm (optional)

6. Second meter: * small division value 0.1s

7. Dimensions: 730×320×350mm

8. Weight: 40Kg
